G14^AR

Name: G14ar
Brand: CSBikes
Price: 5399.00 EUR
Availability: InStock
Rating: 5 (25 reviews)

ALL-ROAD

from 5.399,00 €*

or 216.51/Month

Inquire a bike

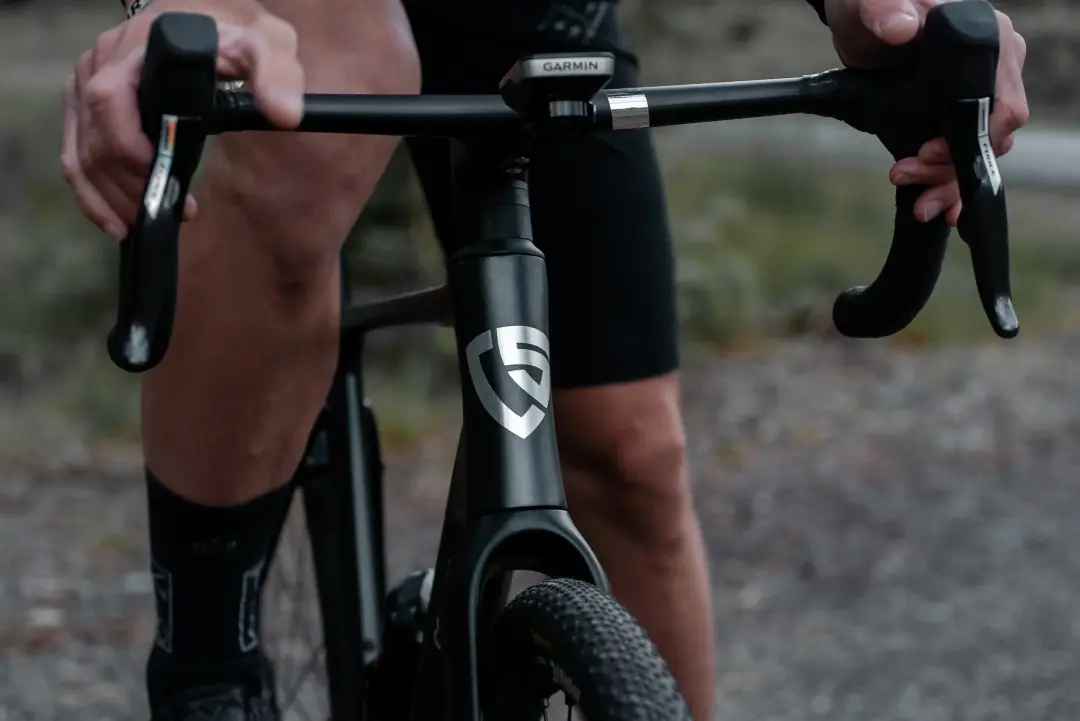

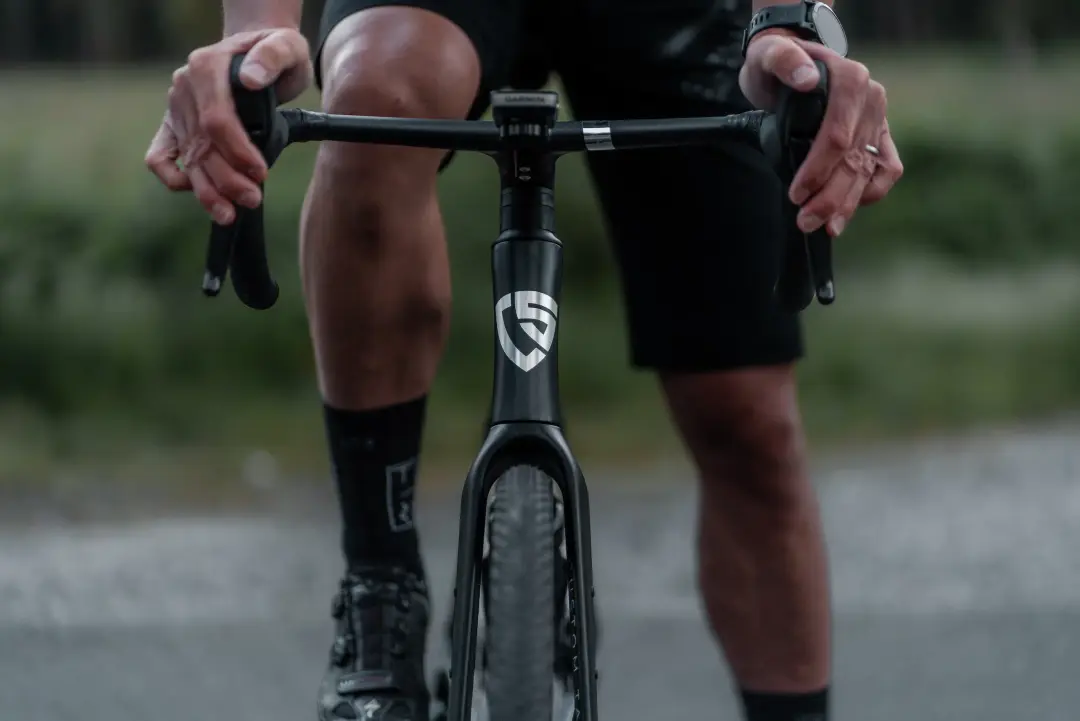

Experience the G14^AR – the pinnacle of performance, durability, and versatility. Master any terrain with ease, from asphalt and gravel to dirt roads and light trails. With CSBikes' custom approach, your perfect bike is within reach, guaranteeing an unrivaled riding experience. Whether you're conquering long distances, touring, or commuting, the G14^AR delivers unparalleled comfort with the perfect mix of features. Elevate your ride without compromise.

Starting at

5.399,00 € ¹

Monthly Payments starting at

€ ²

²Financing Rates

¹ Includes complete bike with Mavic Allroad aluminum wheel set, and SRAM Rival groupset.

Payment & Delievery Options

Inquire Book your Bike-Tailor Contact your Bike-Tailor

Are you in search of a road bike that can comfortably and safely handle off-road adventures? Our All-Road series are designed for just that. Fully customized to your preferences and perfectly fitted, they offer the best of both worlds.

G14 / G14AR

PRESS PLAY - SOUND ON!

Watch our introductory video of the G14^AR (All-road). Learn about our design concept, explore its features, and find out what makes the G14ar stand out among all-road bikes. We address traditional limitations and show how CSBikes has prioritized the rider to create a unique riding experience.

Technical specifications

Highest quality

Experience Next-Level Performance - the All-road Bike: G14ar series features a lightweight carbon frame that balances strength and durability. With top-of-the-line components, precise geometry, seamless integration, and versatile capabilities, the All-road Bike: G14ar series delivers unmatched performance. Below we will outline advanced specifications.

Material

Carbon

Weight From

7.4kg

Type

All-road

Max Wheel Size

700x47c

Frame Weight

1150g

Additional

AXS, Di2, EPS Compatible

Bottom Bracket Type

T47

Fork Weight

445g

Cable

Internal

Seat Tube Size

Custom Aero

Seat Post Weight

190g

Brake Style

Disc (140/160) Flat Mount

Head Set Size

Straight Tube 1-1/2"

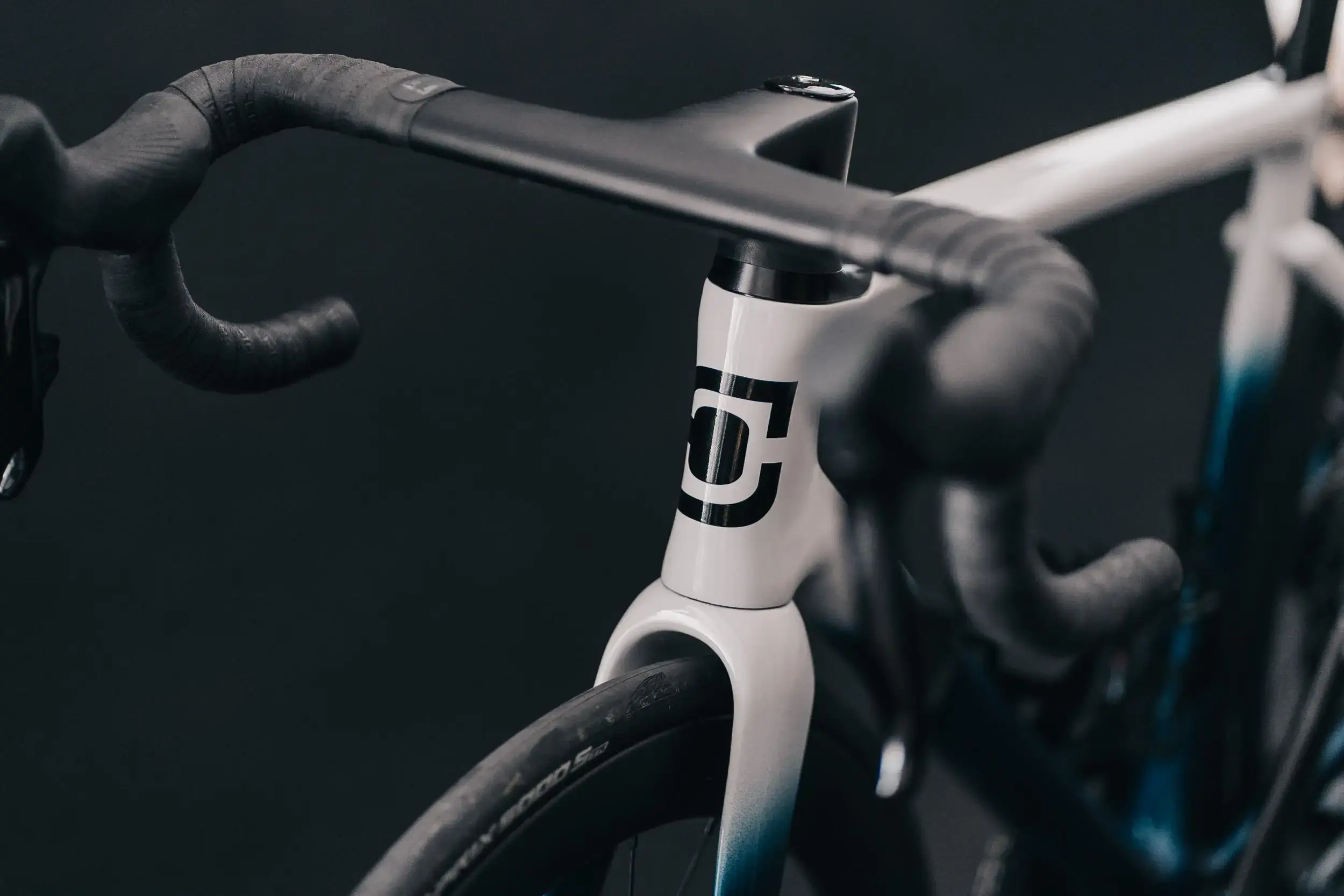

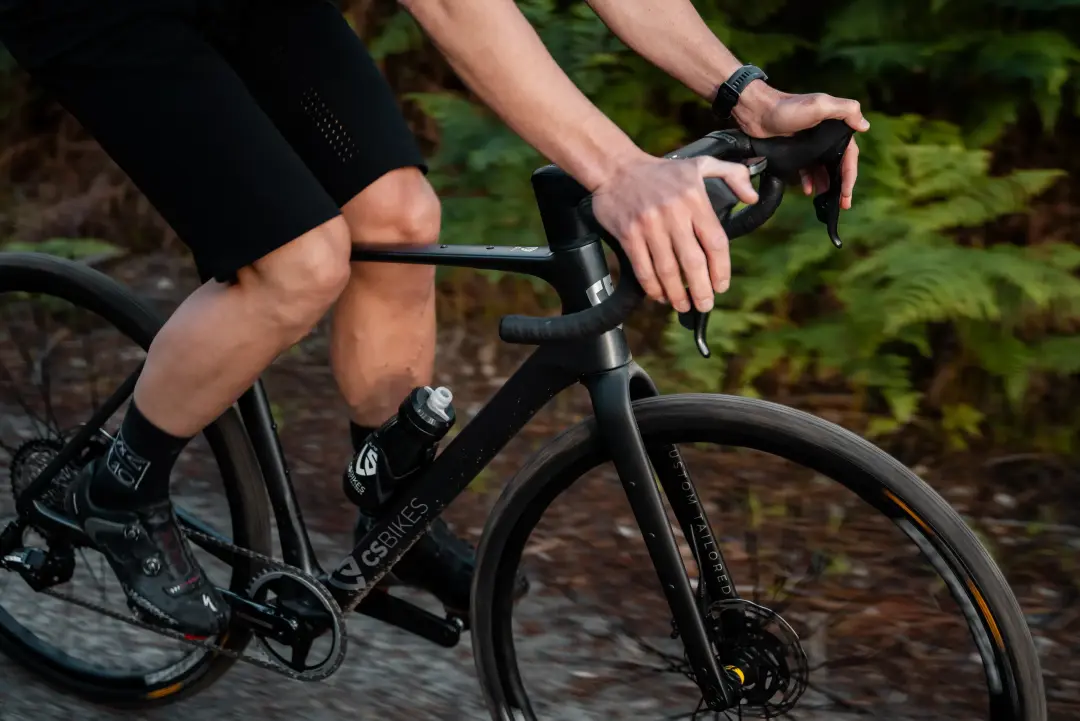

INTEGRATED COCKPIT

20 SIZING OPTIONS

Modern full integrated bikes bought off-the-shelf provide limited adjustments for later rider adaption. When buying a custom fitted bike from CS, we guarantee the correct sizing from the very beginning and benefit from our own integrated handlebar solution being available in 20 different sizing options. Combined with a 80mm reach and 125mm drop, a standardized computer mount interface, and integrated top cap, these bars finish off your custom fitted bike perfectly.

SIMPLICITY OF USE

UNIVERSAL HEADSET

The CSBikes universal integrated headset and spacer set offers unmatched versatility. Compatible with all CSBikes series and many aftermarket options, this design simplifies maintenance and expands your customization possibilities.

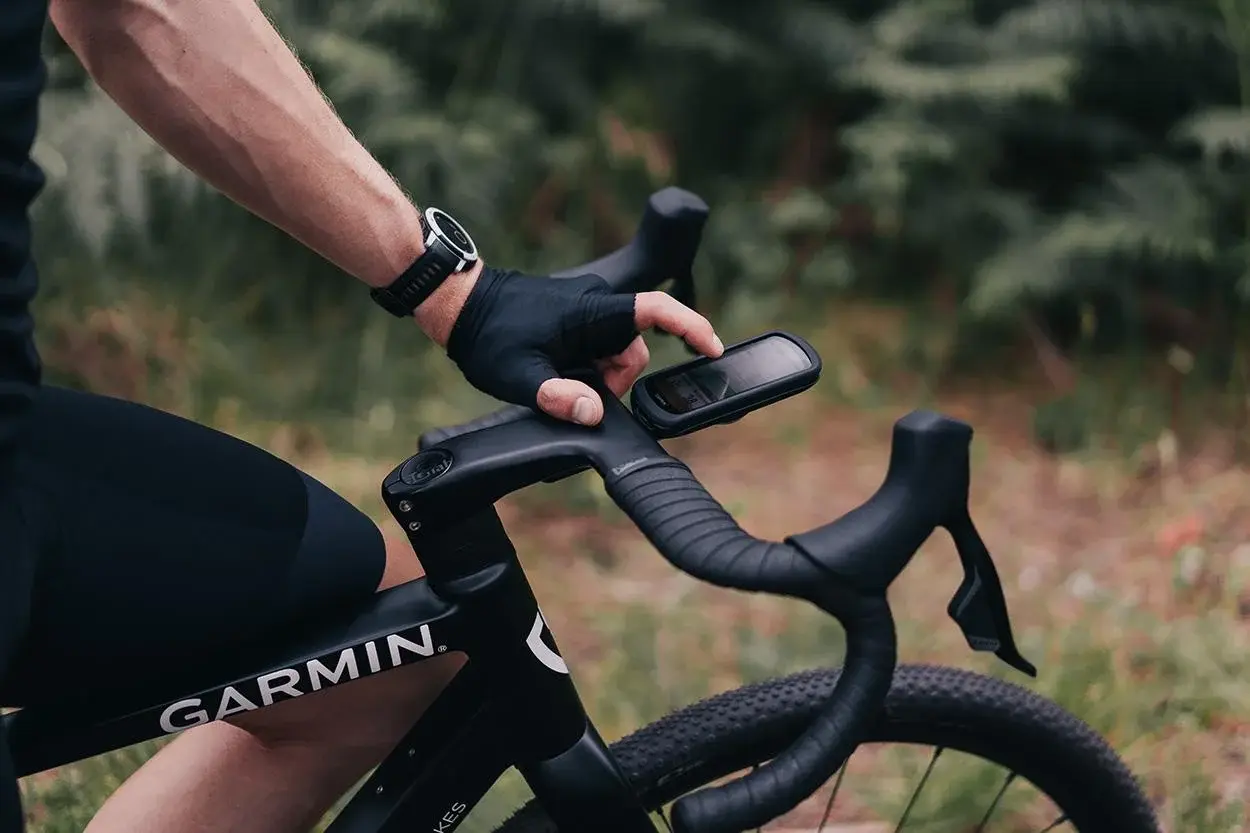

CS|CONNECT

ALL YOUR INFORMATION IN ONE PLACE

CS|Connect is included as a standard feature in all CSBikes, providing riders with advanced connectivity and control. This innovative technology enhances the biking experience by acting as a central hub for essential information, offering convenience, security, and customization. With CS|Connect, every ride becomes more than just a bike journey—it’s a seamless integration of modern technology.

Learn More

Basic equipment

equipment

Complete bike-fitting experience including Bike-Tailor-Interview
High-quality branded components from well-established manufacturers
measuring session, final fitting and CSBikes fitting guarantee
Two years of free service
Ultralight carbon frame painted in one of our signature colors
Over 60 years of combined experience in designing and assembling individual bikes

Concept Packages & Pricing

CSBikes

All-Road

G14

Finishing Kit

CS Integrated Carbon Bars

Component Range

SRAM Rival AXS 2x12 / Disc Brakes

Wheel Set:

Mavic Allroad with Continental GrandPrix 5000s 30c

Price from

5,399€ *

INQUIRE NOW!

Included

Bike Fitting

Included

SQLab Package

Excluded

Tubeless Package

Excluded

Power Meter

Upgrades

Customization

CUSTOM PAINT UPGRADE PACKAGE

ENDLESS OPTIONS

Elevate your bike's aesthetics with our Custom Paint Upgrade Package. As part of our standard offering, you have the freedom to choose any custom color that sparks your imagination. But why stop there? Our selected paint specialists can craft a truly one-of-a-kind masterpiece with a full custom color scheme, tailored exclusively to your preferences.

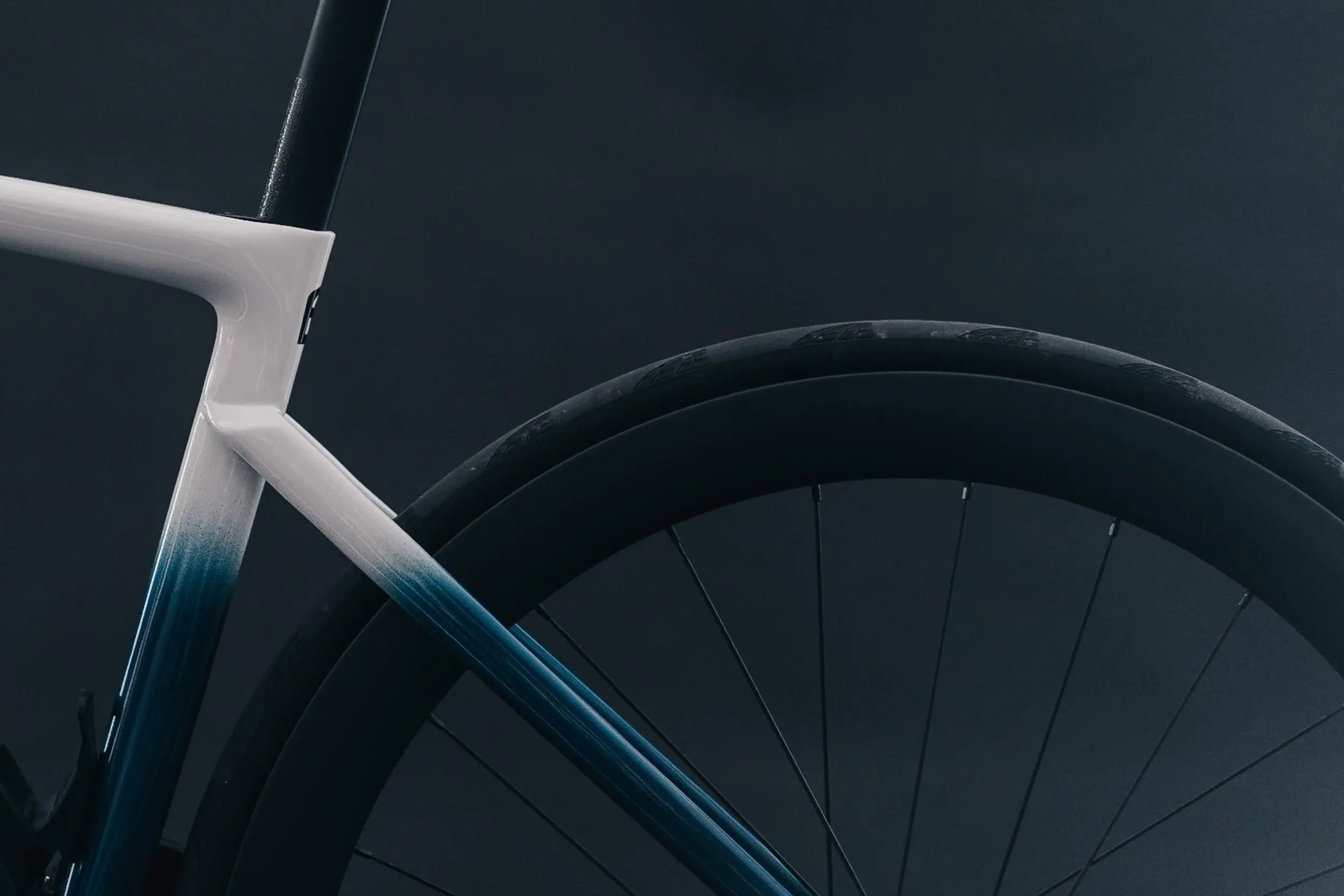

Carbon Wheel Upgrade

CSBikes Range of Custom Carbon Rims

At CS Bikes, we take pride in our direct supply chain, which enables us to offer highly competitive pricing without compromising on quality. By cutting out the middleman, we pass the cost savings directly to our customers, ensuring exceptional value for money. Invest in top-notch carbon rims that enhance your riding experience and elevate your performance without breaking the bank.

DSERIES

CSBIKES DISCIPLINE SPECICIFIC

Enhance the performance of your road series bike with our DSeries Rim Sets, designed to take your riding to the next level. These rim sets offer the perfect upgrade, providing improved aerodynamics, strength, and overall ride quality. We also offer additional upgrade options for spokes and free hubs, allowing you to tailor your rims to your specific needs and preferences.

Wheelset Details

RimModel	Type	Width (mm)	Depth (mm)	Weight (g)	ERD (mm)
CS\|DSeries D3028	Tubeless Ready / Clincher	28	30	1550 (+/-50)	578.5
CS\|DSeries D4029	Tubeless Ready / Clincher	29	40	1670 (+/-50)	518.5
CS\|DSeries D5029	Tubeless Ready / Clincher	29	50	1750 (+/-50)	538.5
CS\|DSeries D6028	Tubeless Ready / Clincher	28	60	1810 (+/-50)	518.5
CS\|DSeries D3028 R	Tubeless Ready / Clincher	28	30	1410 (+/-50)	578.5
CS\|DSeries D4029 R	Tubeless Ready / Clincher	29	40	1540 (+/-50)	518.5
CS\|DSeries D5029 R	Tubeless Ready / Clincher	29	50	1620 (+/-50)	538.5
CS\|DSeries D6028 R	Tubeless Ready / Clincher	28	60	1680 (+/-50)	518.5
CS\|DSeries D5028 XPR	Tubeless Ready / Clincher	28	50	1600 (+/-50)	538.5

Compatibility Chart

Groupset

Mechanical Shifting Rim Brakes

Super Record 12
Record 12
Chorus 12
Super Record 11
Record 11
Chorus 11

Electronic Shifting Rim Brakes

Super Record EPS 12
Super Record EPS 11
Record EPS 11

Mechanical Shifting Disc Brakes

Super Record 12
Record Disc 12
Chorus Disc 12
Ekar 1x13

Electronic Shifting Disc Brakes

Super Record EPS Disc 12

Mechanical Shifting Disc Brakes

Apex 1 HRD
Rival 1 HRD
Rival 22 HRD
Force 1 HRD
Force 22 HRD

Electronic Shifting Disc Brakes

APEX eTap AXS XPLR
Rival eTap AXS
Rival eTap AXS XPLR
GX/Rival eTap AXS Mullet
Force eTap AXS
Force eTap AXS XPLR
Red eTap AXS
Red eTap AXS XPLR

Mechanical Shifting Rim Brakes

Dura-Ace R9100
Ultegra R8000
105 R7000
Dura-Ace 9000
Ultegra 6800
105 5800

Electronic Shifting Rim Brakes

Dura-Ace Di2 R9150
Ultegra Di2 R8050
Dura-Ace Di2 9070
Ultegra Di2 6870

Mechanical Shifting Disc Brakes

Dura-Ace R9120
Ultegra R8020
105 R7020
GRX RX810 1X
GRX RX810 2X
GRX RX600 1X
GRX RX600 2X
GRX RX400 10SPD

Electronic Shifting Disc Brakes

Dura-Ace R9200 12SPD
Ultegra R8100 12SPD
Dura-Ace Di2 R9170
Ultegra Di2 R8070
GRX RX815 1X
GRX RX815 2X

CSBikes - Custom Bikes, Made for You

Not just a bike - a Custom Tailored Bike

Custom Tailored Experience

Experience the ultimate in personalized cycling. Our custom-built bikes cater to your unique requirements, guaranteeing a perfect fit that matches you completely. With fully customizable build packages, you'll enjoy maximum performance, comfort, and enjoyment tailored to your preferred riding style.

Affordable excellence

Affordable customization without compromising performance. Operating independently from dealers and retail stores allows us to offer highly competitive prices. With us, you can enjoy the benefits of riding a custom bike without the hefty price tag.

Unleash Elite Performance

Our bikes are designed for racing, recreation, or adventure, offering unparalleled performance. Crafted with the finest lightweight carbon frames, wheelsets, and handlebars, they feature top-of-the-line component sets from Campagnolo, SRAM, and Shimano.
