Home Road Endurance Road Bike: D14

D14

Name: D14
Brand: CSBikes
Price: 5299.00 EUR
Availability: InStock
Rating: 5 (25 reviews)

Road

from 5.299,00 €*

or 212,50/Month

Inquire a bike

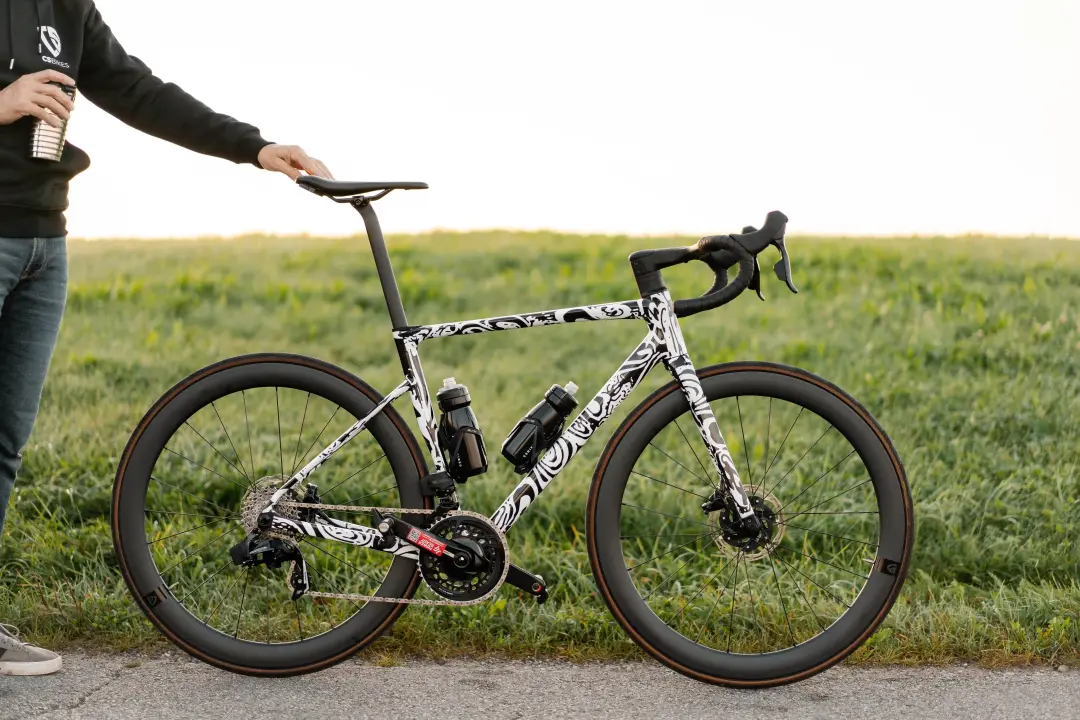

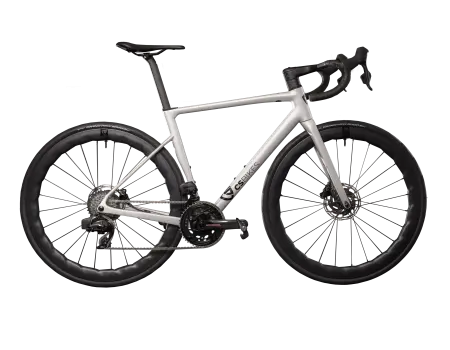

Expanding on the achievements of our beloved D13 model, the D14 elevates endurance cycling to a whole new level. With a fresh emphasis on maximizing the advantages of an ideal bike fit, it delivers unmatched performance. Boasting a revised geometry, a lightweight frame-set, 12mm through axles, and a completely internal cable system, the D14 is finely tuned for all riders. Discover the flawless fusion of comfort, agility, and state-of-the-art technology with our D14 Road Bike.

Starting at

5.299,00 € ¹

Monthly Payments starting at

€ ²

²Financing Rates

¹ Includes a complete bike with Carbon fitting kit, Fulcrum Racing 900 wheelset, and SRAM RIVAL Groupset.

Payment & Delievery Options

Inquire Book your Bike-Tailor Contact your Bike-Tailor

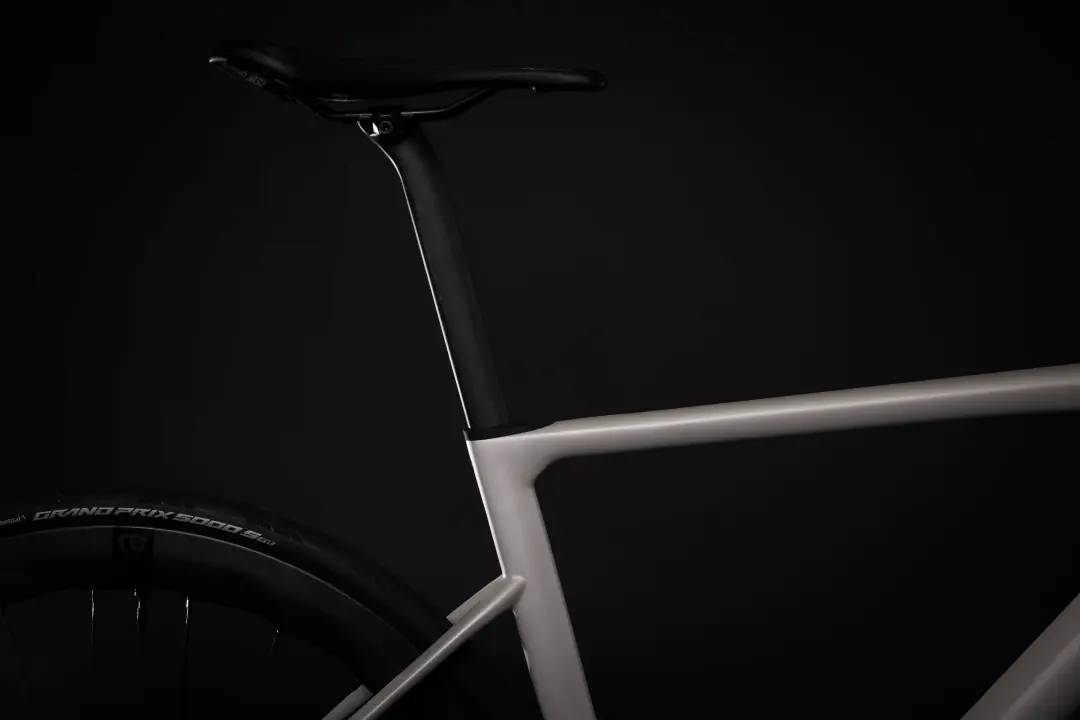

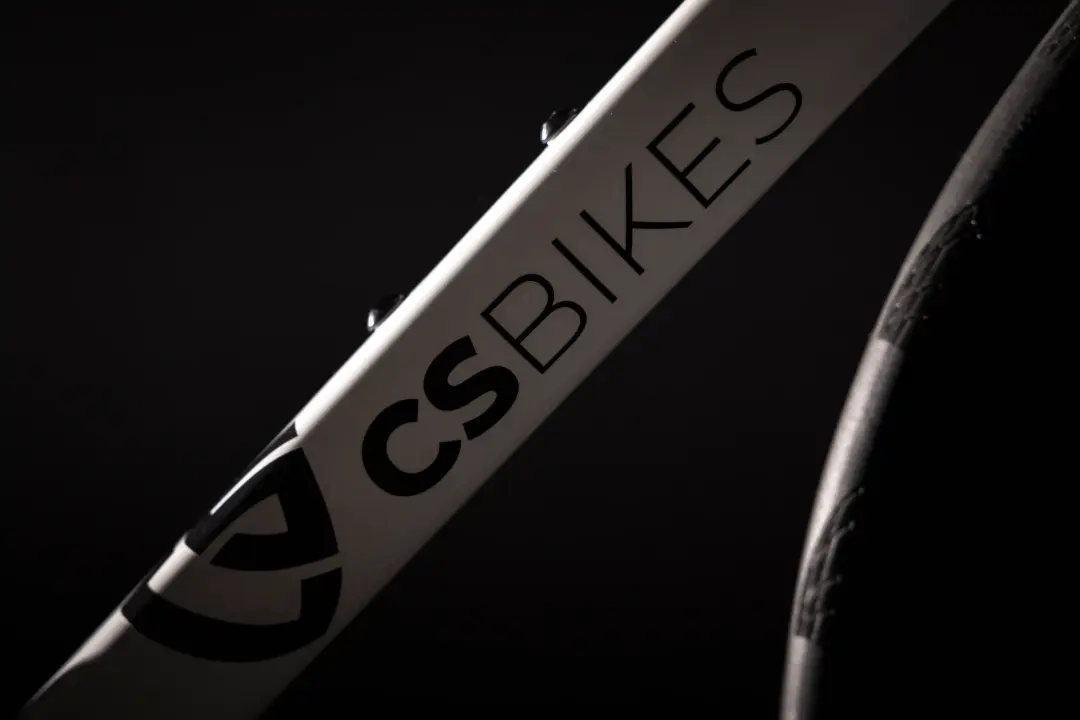

Our brand-new frame-set is meticulously fashioned from high-grade T1000 carbon, guaranteeing exceptional strength & stiffness while maintaining an incredibly light weight of less than 860g (size medium). Encounter the epitome of performance with our completely concealed cable system, effortlessly accommodating both mechanical and electronic group-sets. We've enhanced comfort through dropped seat stays, a sloping top tube, and an integrated seat clamp design, all while preserving a sleek and streamlined look. Elevate your cycling experience with our groundbreaking frame-set, delivering unparalleled performance and aesthetics.

D14 - THE GAME CHANGER

PRESS PLAY - SOUND ON!

This model offers an optimal combination of performance and comfort for long rides, short sprints or cycling races. With its light carbon frame and high-quality equipment, the D14 is a reliable and versatile racing bike that is particularly suitable for high-performance and comfortable fit.

Technical specifications

Highest quality

Experience Next-Level Performance - the Endurance Road Bike: D14 series features a lightweight carbon frame that balances strength and durability. With top-of-the-line components, precise geometry, seamless integration, and versatile capabilities, the Endurance Road Bike: D14 series delivers unmatched performance. Below we will outline advanced specifications.

Material

Carbon

Weight From

7.0kg

Type

Road Disc

Max Wheel Size

700x32c

Frame Weight

860g (M)

Additional

AXS, EPS & Di2 Compatible

Bottom Bracket Type

BB86

Fork Weight

380g

Cable

Full-Internal

Seat Tube Size

Specific Aero

Seat Post Weight

190g

Brake Style

Disc (140/160) Flat Mount

Head Set Size

Straight 1-1/2"

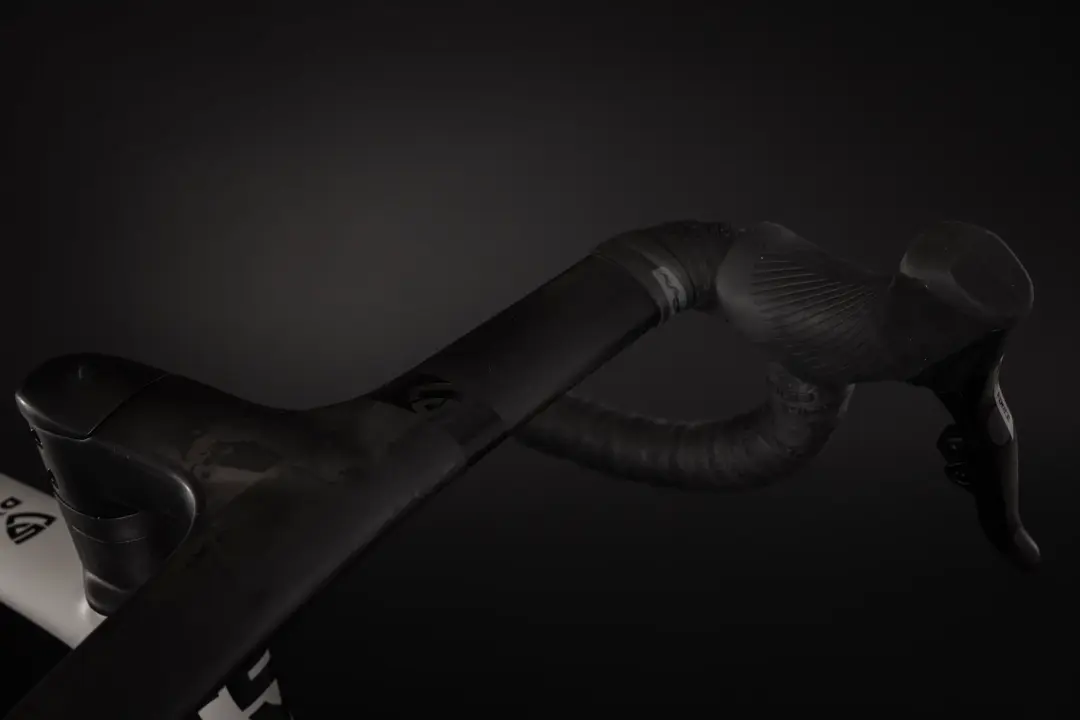

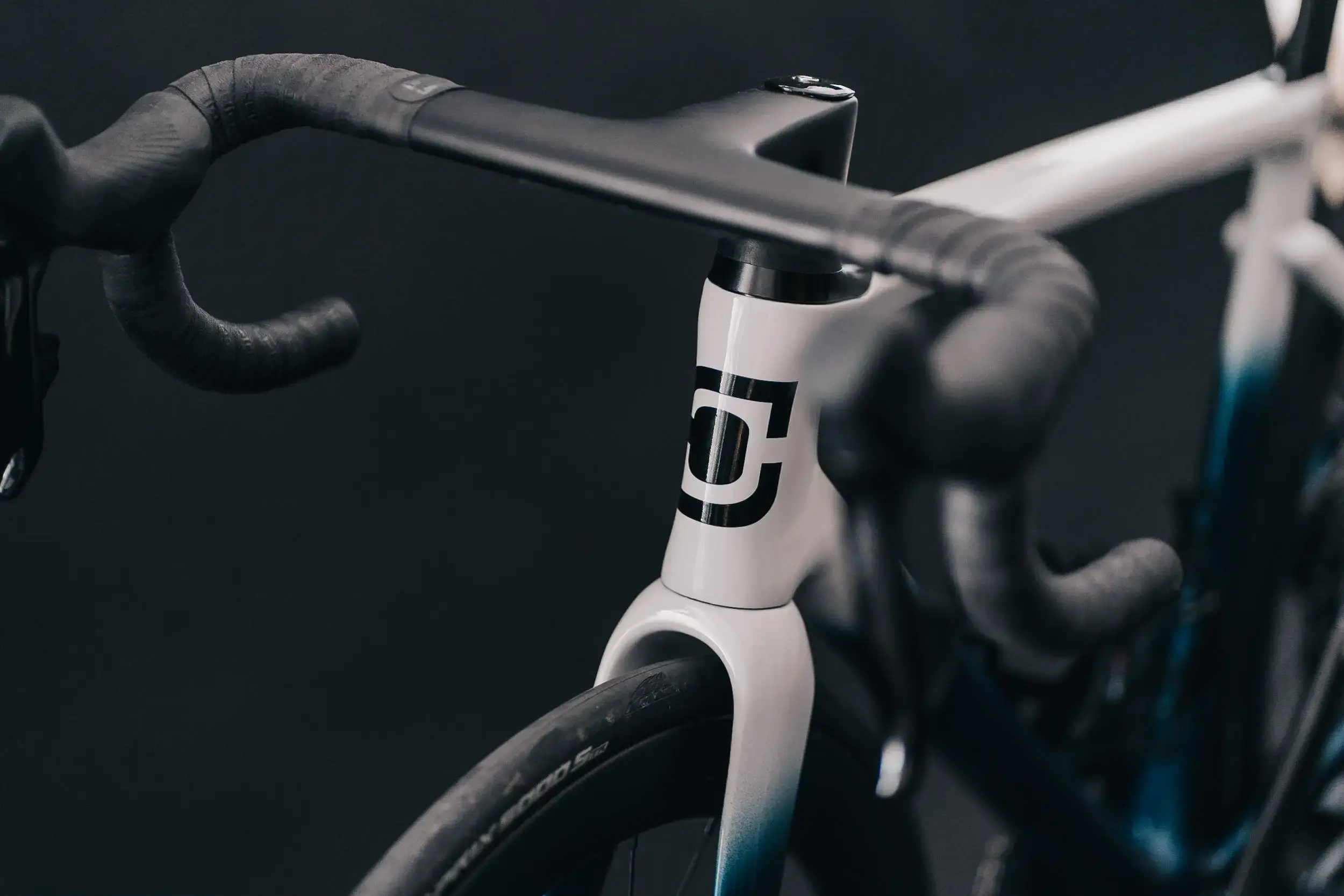

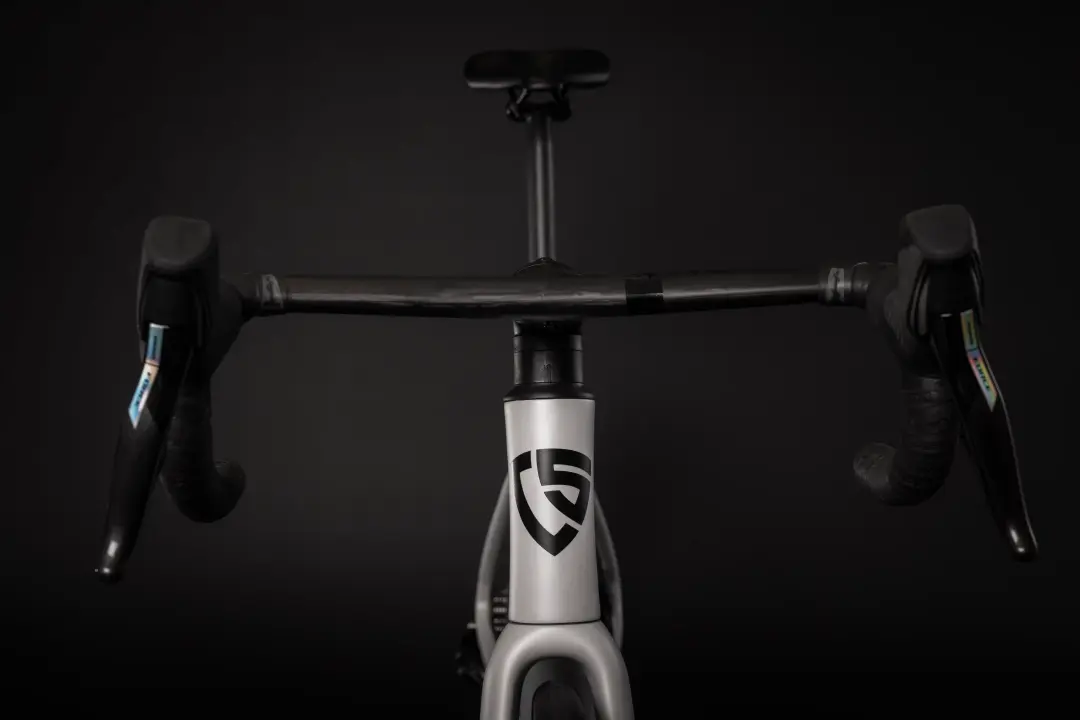

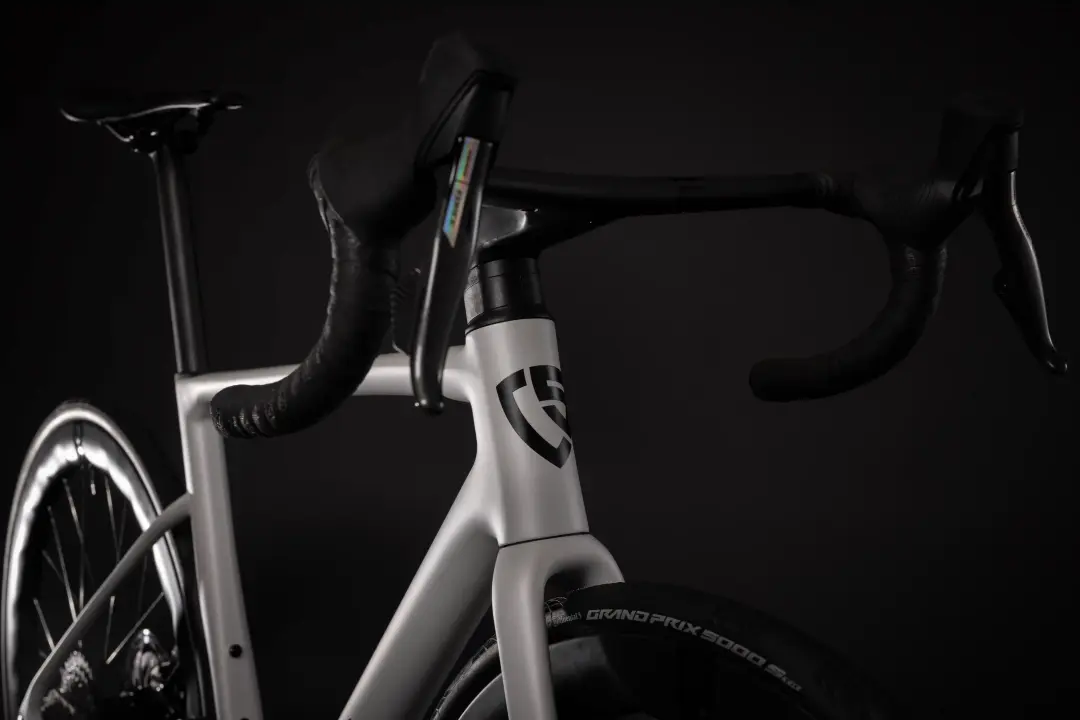

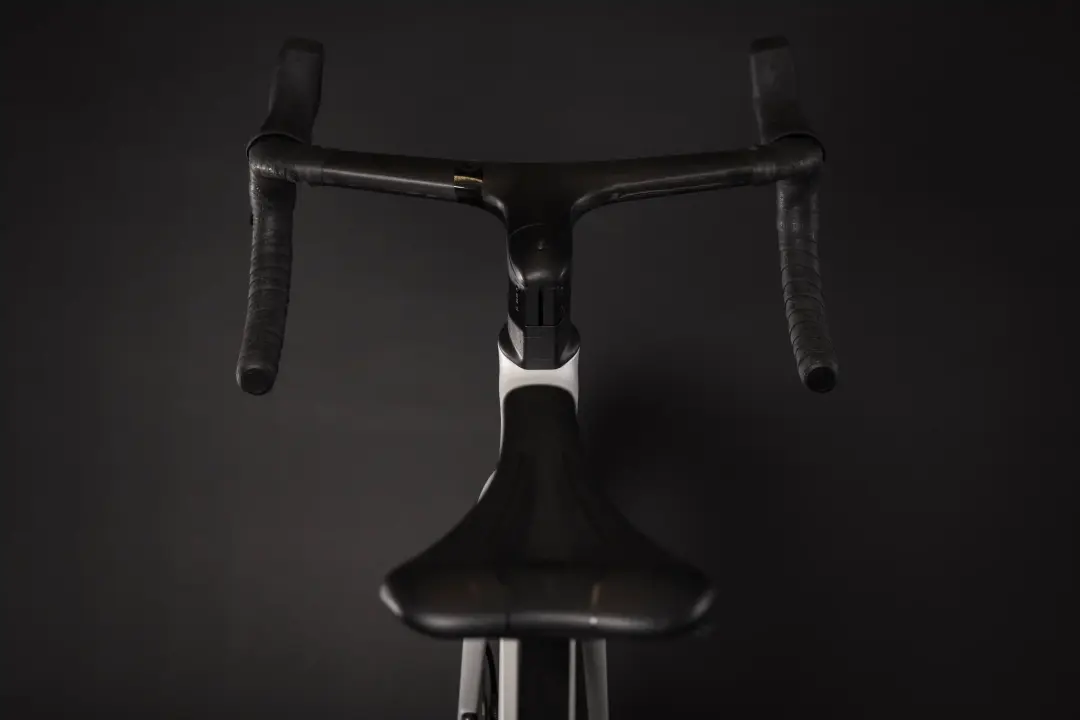

INTEGRATED COCKPIT

20 SIZING OPTIONS

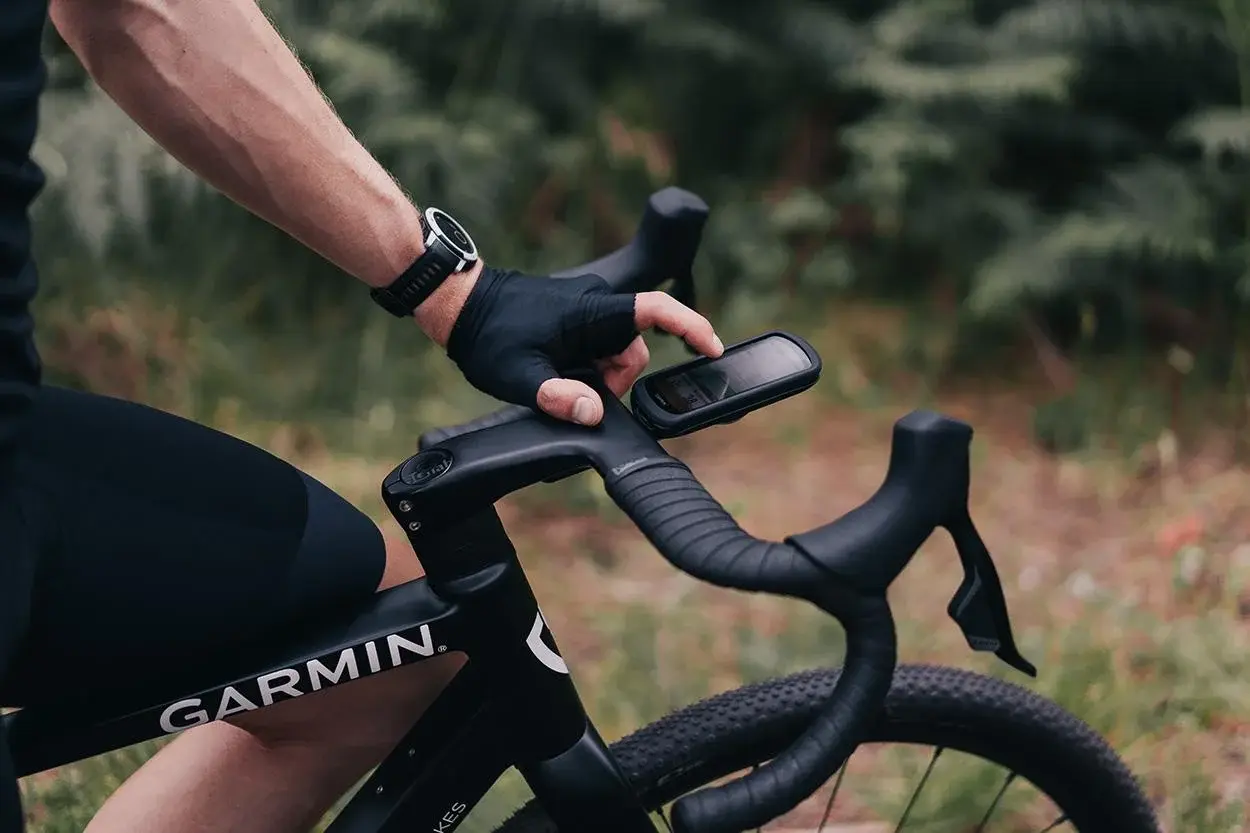

Modern full integrated bikes bought off-the-shelf provide limited adjustments for later rider adaption. When buying a custom fitted bike from CS, we guarantee the correct sizing from the very beginning and benefit from our own integrated handlebar solution being available in 20 different sizing options. Combined with a 80mm reach and 125mm drop, a standardized computer mount interface, and integrated top cap, these bars finish off your custom fitted bike perfectly.

SIMPLICITY OF USE

UNIVERSAL HEADSET

The CSBikes universal integrated headset and spacer set offers unmatched versatility. Compatible with all CSBikes series and many aftermarket options, this design simplifies maintenance and expands your customization possibilities.

PREMIUM BOTTOM BRACKETS

BIKONE™

Our bottom bracket supplier for 2025 is already race proven at the highest level with wins in the Tour de France, Giro d-Italia and the World championships thanks to Tadej Pogačar! Their innovative Dual cup technology ensures perfect alignment between the bearing races. The housing is manufactured from aerospace class 7075 aluminium alloy, anodised for superior corrosion resistance and comprising an extensive sealing system, these bottom brackets are built for optimum performance. Choose from both steel angular contact bearings that support both axial and radial loads or a premium hybrid ceramic solution.

CS|CONNECT

ALL YOUR INFORMATION IN ONE PLACE

CS|Connect is included as a standard feature in all CSBikes, providing riders with advanced connectivity and control. This innovative technology enhances the biking experience by acting as a central hub for essential information, offering convenience, security, and customization. With CS|Connect, every ride becomes more than just a bike journey—it’s a seamless integration of modern technology.

Learn More

Basic equipment

equipment

Complete bike-fitting experience including Bike-Tailor-Interview
High-quality branded components from well-established manufacturers
measuring session, final fitting and CSBikes fitting guarantee
Two years of free service
Ultralight carbon frame painted in one of our signature colors
Over 60 years of combined experience in designing and assembling individual bikes

Concept Packages & Pricing

CSBikes

Road

D14

RIVAL

Finishing Kit

CS Integrated Carbon Bars

Component Range

SRAM Rival AXS 2x12 / Disc Brakes

Wheel Set:

CS|D4029 with Continental GrandPrix 5000s TL 30c

Price from

6.299€ *

INQUIRE NOW!

Included

Bike Fitting

Included

SQLab Package

Included

Tubeless Package

Included

Power Meter

Road

D14

FORCE

Finishing Kit

CS Integrated Carbon Bars

Component Range

SRAM FORCE AXS 2x12 (D2) / Disc Brakes

Wheel Set:

CS|D5028 XPR with Continental GrandPrix 5000S TR 30c

Price from

7.299€ *

INQUIRE NOW!

Included

Bike Fitting

Included

SQLab Package

Included

Tubeless Package

Included

Power Meter

Upgrades

Customization

CUSTOM PAINT UPGRADE PACKAGE

ENDLESS OPTIONS

Elevate your bike's aesthetics with our Custom Paint Upgrade Package. As part of our standard offering, you have the freedom to choose any custom color that sparks your imagination. But why stop there? Our selected paint specialists can craft a truly one-of-a-kind masterpiece with a full custom color scheme, tailored exclusively to your preferences.

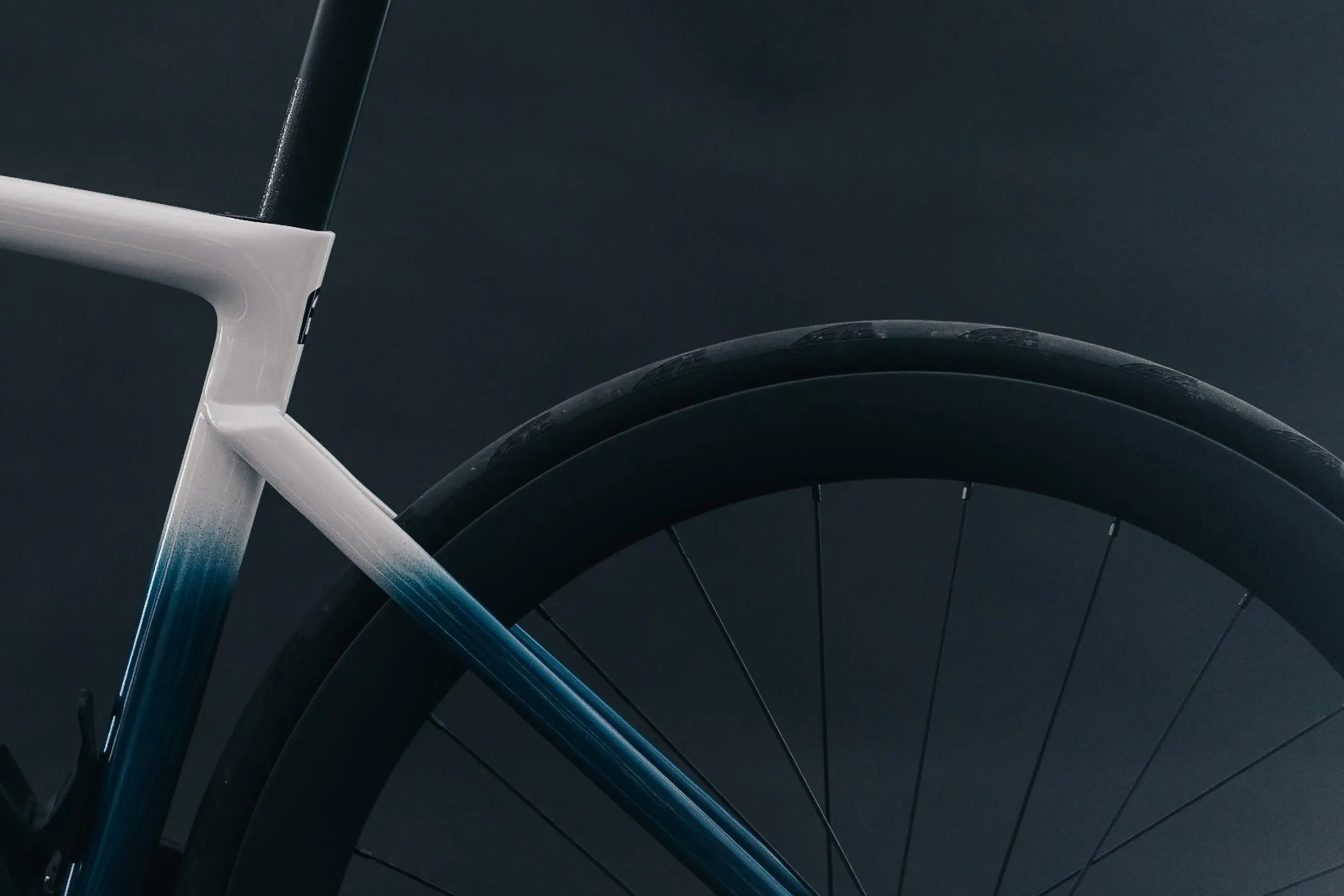

Carbon Wheel Upgrade

CSBikes Range of Custom Carbon Rims

At CS Bikes, we take pride in our direct supply chain, which enables us to offer highly competitive pricing without compromising on quality. By cutting out the middleman, we pass the cost savings directly to our customers, ensuring exceptional value for money. Invest in top-notch carbon rims that enhance your riding experience and elevate your performance without breaking the bank.

DSERIES

CSBIKES DISCIPLINE SPECICIFIC

Enhance the performance of your road series bike with our DSeries Rim Sets, designed to take your riding to the next level. These rim sets offer the perfect upgrade, providing improved aerodynamics, strength, and overall ride quality. We also offer additional upgrade options for spokes and free hubs, allowing you to tailor your rims to your specific needs and preferences.

Wheelset Details

RimModel	Type	Width (mm)	Depth (mm)	Weight (g)	ERD (mm)
CS\|DSeries D3028	Tubeless Ready / Clincher	28	30	1550 (+/-50)	578.5
CS\|DSeries D4029	Tubeless Ready / Clincher	29	40	1670 (+/-50)	518.5
CS\|DSeries D5029	Tubeless Ready / Clincher	29	50	1750 (+/-50)	538.5
CS\|DSeries D6028	Tubeless Ready / Clincher	28	60	1810 (+/-50)	518.5
CS\|DSeries D3028 R	Tubeless Ready / Clincher	28	30	1410 (+/-50)	578.5
CS\|DSeries D4029 R	Tubeless Ready / Clincher	29	40	1540 (+/-50)	518.5
CS\|DSeries D5029 R	Tubeless Ready / Clincher	29	50	1620 (+/-50)	538.5
CS\|DSeries D6028 R	Tubeless Ready / Clincher	28	60	1680 (+/-50)	518.5
CS\|DSeries D5028 XPR	Tubeless Ready / Clincher	28	50	1600 (+/-50)	538.5

Compatibility Chart

Groupset

Mechanical Shifting Rim Brakes

Super Record 12
Record 12
Chorus 12
Super Record 11
Record 11
Chorus 11

Electronic Shifting Rim Brakes

Super Record EPS 12
Super Record EPS 11
Record EPS 11

Mechanical Shifting Disc Brakes

Super Record 12
Record Disc 12
Chorus Disc 12
Ekar 1x13

Electronic Shifting Disc Brakes

Super Record EPS Disc 12

Mechanical Shifting Rim Brakes

Apex (2x10spd)
Rival 22
Force 22

Mechanical Shifting Disc Brakes

Apex 1 HRD
Rival 1 HRD
Rival 22 HRD
Force 1 HRD
Force 22 HRD

Electronic Shifting Disc Brakes

Rival eTap AXS
Force eTap AXS
Red eTap AXS

Mechanical Shifting Rim Brakes

Dura-Ace R9100
Ultegra R8000
105 R7000
Dura-Ace 9000
Ultegra 6800
105 5800

Electronic Shifting Rim Brakes

Dura-Ace Di2 R9150
Ultegra Di2 R8050
Dura-Ace Di2 9070
Ultegra Di2 6870

Mechanical Shifting Disc Brakes

Dura-Ace R9120
Ultegra R8020
105 R7020
GRX RX810 1X
GRX RX810 2X
GRX RX600 1X
GRX RX600 2X
GRX RX400 10SPD

Electronic Shifting Disc Brakes

Dura-Ace R9200 12SPD
Ultegra R8100 12SPD
Dura-Ace Di2 R9170
Ultegra Di2 R8070
GRX RX815 1X
GRX RX815 2X

CSBikes - Custom Bikes, Made for You

Not just a bike - a Custom Tailored Bike

Custom Tailored Experience

Experience the ultimate in personalized cycling. Our custom-built bikes cater to your unique requirements, guaranteeing a perfect fit that matches you completely. With fully customizable build packages, you'll enjoy maximum performance, comfort, and enjoyment tailored to your preferred riding style.

Affordable excellence

Affordable customization without compromising performance. Operating independently from dealers and retail stores allows us to offer highly competitive prices. With us, you can enjoy the benefits of riding a custom bike without the hefty price tag.

Unleash Elite Performance

Our bikes are designed for racing, recreation, or adventure, offering unparalleled performance. Crafted with the finest lightweight carbon frames, wheelsets, and handlebars, they feature top-of-the-line component sets from Campagnolo, SRAM, and Shimano.
